Hinged Doors
Innovation built on strong roots

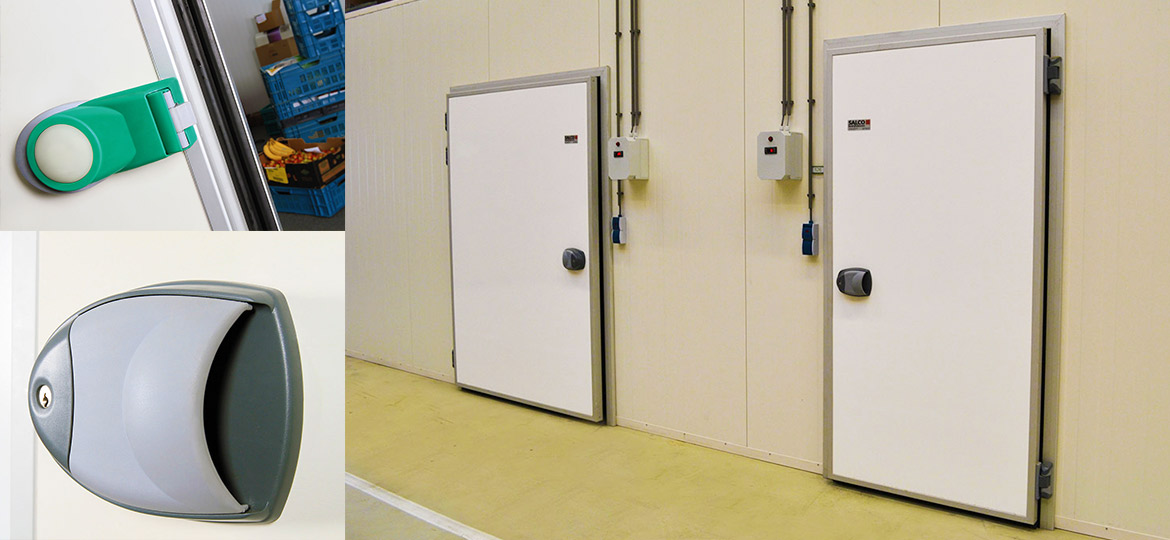

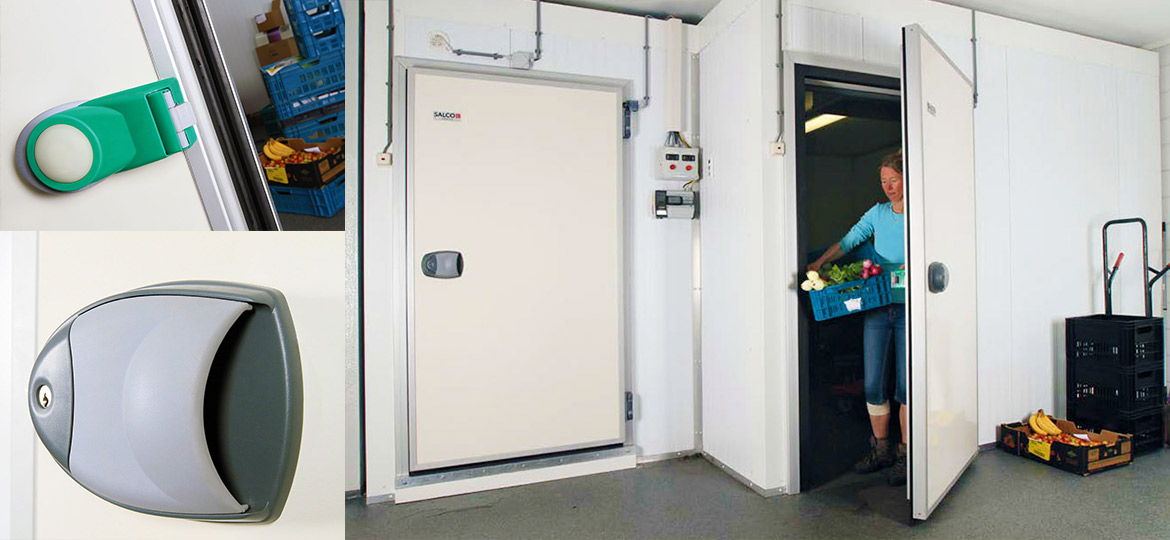

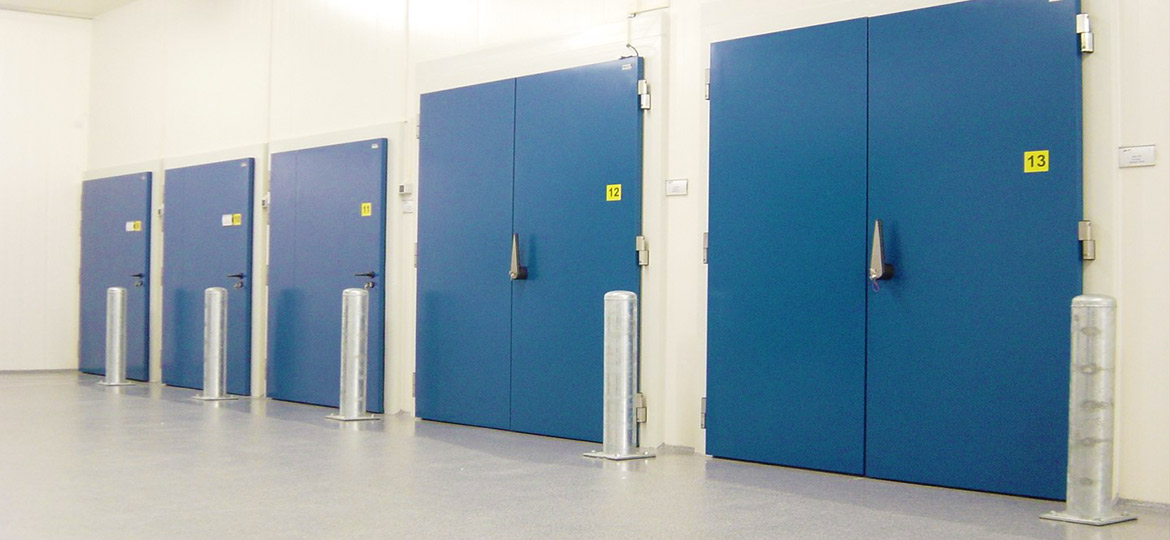

PSI's Insulated Hinged Doors are designed specifically for cold and chilled storage applications, and can be installed both internally and externally.
Composed of a 100 mm (Chiller and Freezer type) and 140 mm thick (Blast Freezer only) insulated core with a polyester coating on both sides, these hinged doors are finished with anodised aluminium profiles all around with thermal breaks to prevent heat bridges. Fabricated with galvanised steel/plastic rising hinges, they also come with an emergency unlocking device. The freezer design is provided with frame heating in the door frame and threshold, with glazing also available as an additional option.
In-house Capabilities
PSI can comprehensively analyze your designs or create designs for you based on your process requirements. We are high pressure equipment manufacturer that employs advanced methods of design, including stress and fatigue analysis reports and finite element analysis if required.
PSI Sliding Doors are designed specifically for use in cold and chilled storage applications and can be installed both internally and externally.
| Thickness door leaf | 100mm. |
| R-value | Approx. 4.76(m2.K/W). |
| Hinged | In composite material, low temperature and anti-corrosive. Adjustable in three directions. Theft-proof pin and tamper-proof fixing with door closed. Auto lubricating hidden ramps. |
| Wall Frame | Anodised Aluminium Profiles with thermal break to prevent heat bridges. |
| Door frame | Anodised Aluminium Profiles with a complete thermal break to prevent heat bridges. |
| Operation | Manual. |
| Sealing | Whole perimeter sealed by means of rubber profiles. |
| Key Lock | Supplied with key lock and internal safety release (Push-button). |
